WallSight™ — Locate Studs, Pipes & Live Wires Ahead of Drilling

Quit Drilling Blind and Hoping for the Best

One wrong hole and you’re stuck patching drywall, calling a plumber, or worse — facing a sparking wire behind your TV mount. The HW-710 Wall Scanner reveals exactly where studs, copper pipes, and live AC wires lurk before your drill bit even touches the wall. Five scanning modes. One crisp LCD display. Zero second-guessing.

Cheap Magnetic Stud Finders Don’t Tell You the Whole Story

Magnet-based detectors only locate nails — and they fail half the time on plaster. You end up tapping the wall like grandpa did, drilling multiple holes before hitting a joist, then hoping your shelf stays put. One botched hole later, you’re $400 deeper in an unexpected pipe fix. The HW-710 removes the guessing once and for all.

Engineered to Detect the Three Essentials You Actually Need

➤ Locks onto Wood Studs up to 1½" Deep: Three depth options — ½", 1", and 1½" — locate joists behind thick plaster, double drywall, or paneling without the false alerts basic finders throw your way.

➤ Detects Live AC Wires Before Your Drill Does: A dedicated AC setting triggers a warning icon and sounds an audio alarm the instant live current is detected. The hot wire stays the electrician’s headache, not yours.

➤ Spots Copper Pipes and Concrete Rebar: Metal mode senses both ferrous (steel rebar) and non-ferrous (copper pipes) up to 38 mm deep — the two surprises that turn a quick TV mount into a weekend hardware run.

How the HW-710 Sees Right Through Your Wall

Within the casing lies a wideband sensor array that detects density and electromagnetic shifts through drywall, plaster, and concrete. As you glide the scanner across the wall, the LCD displays a live signal bar that grows as you near an object — then snaps to CENTER with a red dot the instant you’re exactly aligned. A percentage reading shows how close you are to the stud’s real center, so you can mark once and drill once.

It auto-calibrates the moment you switch it on against the wall. No twisting, no resetting every few feet, no waiting for LEDs to stabilize. Press the button, slide, mark.

Why Both DIYers and Pros Reach for It

“Last summer, I nearly drilled into a live wire hanging a bathroom mirror. Bought a $15 stud finder afterward — it was useless on old plaster. This one actually spots the AC line and the alarm is loud enough to hear over the radio. I found three pipes I had no clue were lurking behind the backsplash.” — Daniel R.

“I’m a finish carpenter and keep one in the truck for tricky jobs where magnets miss. The depth settings are what the $20 models don’t offer. Totally worth it.” — Hector M.

What You Really Get

✓ Locate the stud on the initial scan, not the third.
✓ Detect live wires before your drill bit does.
✓ Mount heavy TVs, shelves, and cabinets hassle-free.

Three Steps to a Perfect Hole Every Time

1. Power On holding the scanner flat against the wall — auto-calibration happens in a second.
2. Select the Mode you need: stud depth, AC, or metal. The mode icon lights up on the LCD.
3. Slide Side to Side. When the signal bar fills and the CENTER lock activates (red dot + audio beep), mark your spot and drill.

How It Measures Up

Feature	HW-710 Wall Scanner	Cheap Magnetic Stud Finder	Knock-and-Pray
Finds wood studs	Yes, up to 1½" deep	Only if a nail is close to the surface	Sometimes
Detects live AC wiring	Yes, with audio and LCD alert	No	No
Spots metal pipes & rebar	Yes, up to 38 mm	No	No
Center-lock readout	LCD with depth percentage	Blinking LED at best	None
Works on plaster & concrete	Yes	Hit or miss	No

Specs at a Glance

• Model: HW-710

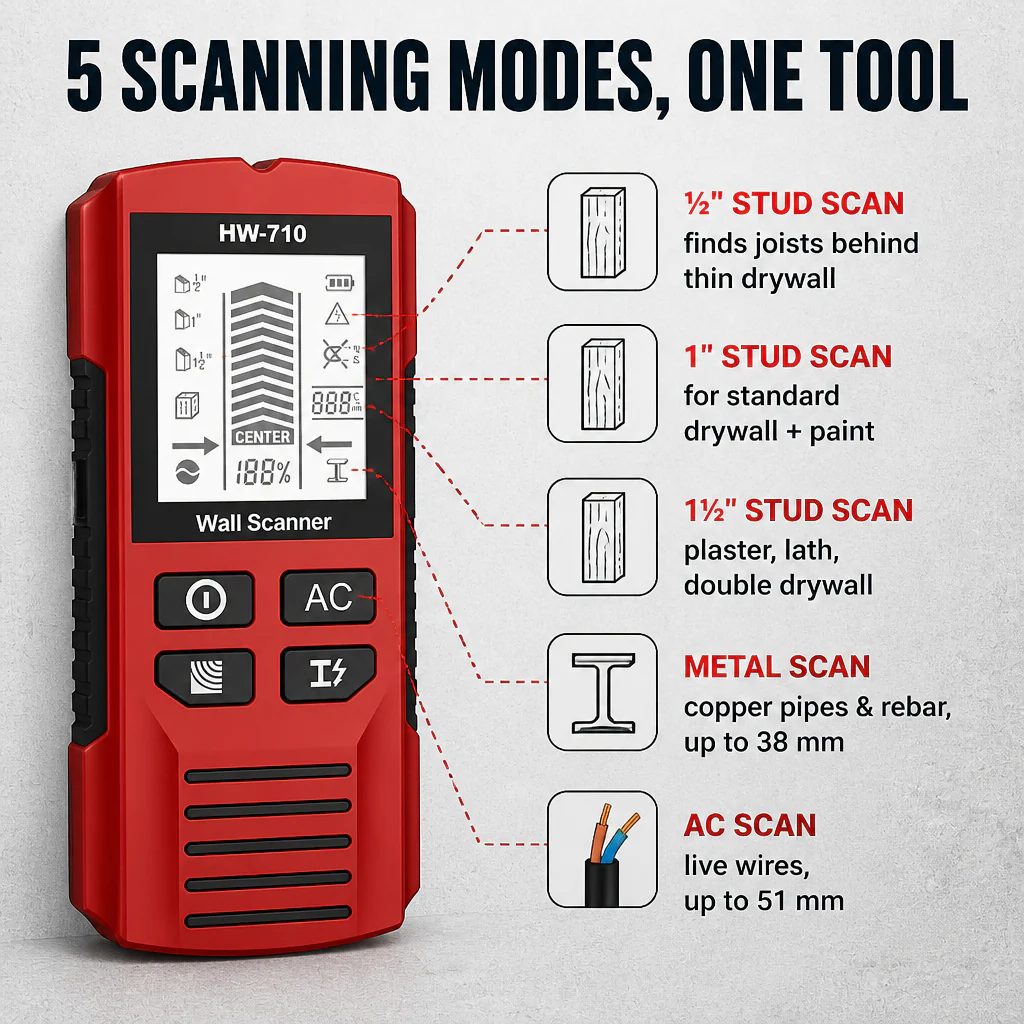

• Scan modes: 5 (½" stud / 1" stud / 1½" stud / metal / AC)
• Max metal scan depth: ~38 mm (1.5")
• Max AC scan depth: ~51 mm (2")
• Display: LCD with center indicator, signal bar, depth %, mode icons
• Audio alarm: built-in, sounds at center-lock
• Buttons: 4 sealed tactile (Power/Stud, AC, Metal, Deep Metal)
• Housing: shock-absorbent shell with non-marring rear pads
• Dimensions: 15 × 6.7 × 3 cm (5.9 × 2.6 × 1.2 in)
• Power: battery-operated, low-battery indicator on display
• Colors: Yellow, Red, Silver

Quick Answers

Will it work on plaster or lath walls?

Yes — the 1½" stud setting is designed specifically for thicker plaster and double drywall. Skip the ½" setting for those walls; it’s tailored for thin surfaces.

How precise is the live wire detection?

The AC mode senses currents in typical household wiring up to approximately 51 mm through drywall. Use it as a safety check alongside shutting off the breaker — not as a replacement.

Does it require recalibrating each time it moves?

No. It auto-calibrates immediately when powered on against the wall. Slide and scan — no twisting or resetting between passes needed.

Will it damage my freshly painted wall?

The back pads are soft and won’t leave marks. Slide it gently without pressing hard. No scuffs on satin or eggshell paint.

What kind of batteries does it use?

It uses standard batteries with a low-battery icon shown on the LCD. Batteries may not always be included — check the package at delivery.

Drill with Confidence — Or Get Your Money Back

If the HW-710 fails to locate what’s behind your wall on the first scan, return it within 30 days for a full refund. The bracket stays mounted. The pipe stays unharmed. Or your scanner costs nothing.
